Technology
Standards
• IEEE802.3 10BASE-T
• IEEE802.3u 100BASE-TX and 100BASE-FX
• IEEE802.3x Full duplex and flow control
Forward and Filtering Rate
• 14,880pps for 10Mbps
• 148,810pps for 100Mbps
Packet Buffer Memory
• 128K bits
Processing Type
• Store-and-Forward
• Auto Negotiation
• Half-duplex back-pressure and IEEE802.3x full-duplex flow
control
• Auto MDI/MDIX
Power
Input Voltage
• 10 to 48VDC (DC Terminal Block)
• 12VDC (DC Jack) or 24VAC, 0.185A (AC Terminal Block)
Power Consumption
• 4.32W MAX. 0.36A @ 12VDC, 0.09A @ 48VDC
Protection
• Overload current protection
• Reverse polarity protection
Mechanical
Casing
• Aluminum Case
• IP30
Dimensions
• 50mm (W) x 110mm (D) x 135mm (H)
(1.97" (W) x 4.33" (D) x 5.31" (H))
Weight
• 0.8Kg (1.76lbs.)
Installation
• DIN-Rail (Top hat type 35mm), Panel, or Rack mounting

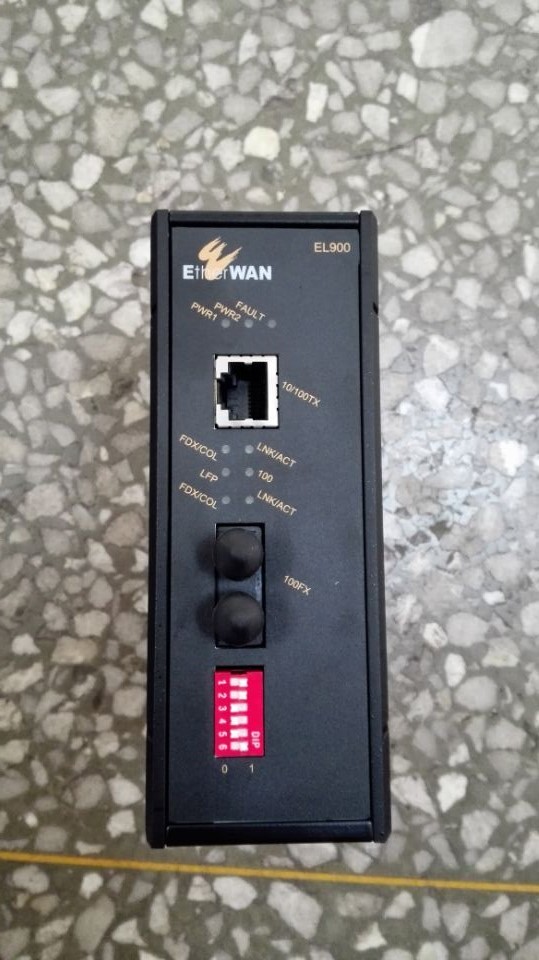

Interface
Ethernet Port
• 10/100BASE-TX: 1 port
• 100BASE-FX: 1 port
LED Indicators
• Per Unit: Power, LFPT
• Per 10/100TX Port: Link/Activity, Full-duplex/Collision,
Speed
• Per 100FX port: Link/Activity, Full-duplex/Collision
Relay Contact
• Relay contact rating with current 1A @ 30VDC, 0.5A @
120VAC
Environment
Operating Temperature
• 40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
Storage Temperature
• -40°C to 85°C (-40°F to 185°F)
Ambient Relative Humidity
• 5% to 95% (non-condensing)
Regulatory Approvals
ISO
• Manufactured in an ISO9001 facility
Safety
ISA12.12.01
• Class 1, Division 2 group A, B, C &D for hazardous locations
UL60950-1
EN60950-1
IEC60950-1
EMI
FCC Part 15B, Class A
EN61000-6-3
EN55022
EN61000-3-2
EN61000-3-3
EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)
NEMA TS1/2
• Environmental requirements for traffic control equipment
